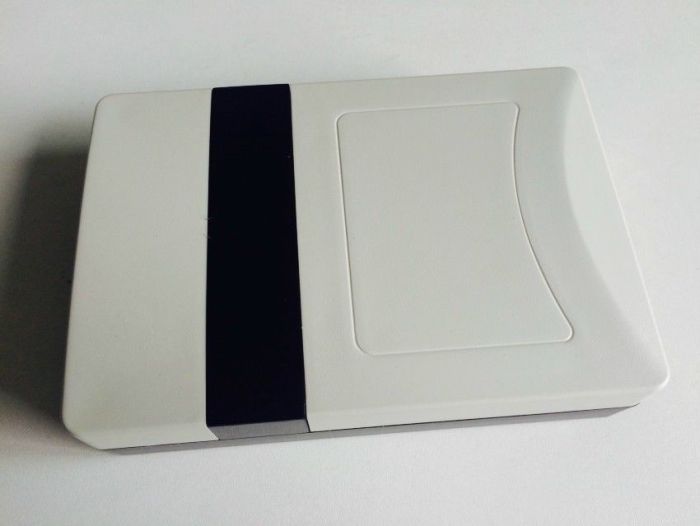

GEN 2 USB Desktop UHF RFID Reader, Compliant with ISO 18000-6C (Gen 2) Standard

Technical Data Sheet

Operating Frequency GB (920 ~ 925MHz), American Standard (902 ~ 928MHz) or custom other band hopping or fixed frequency operation

Support Agreement ISO18000-6B, ISO18000-6C (EPC GEN2)

Broad-spectrum frequency hopping frequency hopping (FHSS) or fixed frequency set by software

Work regular automatic reader, card reader or external trigger control software commanding reader, reader mode can be set

RF Power 0 ~ 30dBm, software adjustable

Reading distance identification distance adjustment range: 0-30CM

Reader reader circular polarization sensitivity

Single-label reader time to read the ID number 64 time <6ms

Antenna parameters built-in antenna

Support USB interface can be customized interface RS485, RS232, Wiegand26, Wiegand34 RJ45, CAN, WIFI

Operating voltage DC + 12V

Reader Tip buzzer

Power consumption is not more than the maximum power of 4W

Operating temperature -30 ℃ ~ + 80 ℃

Storage temperature -40 ℃ ~ + 125 ℃

Operating humidity 20% to 95% (non-condensing)

Dimensions 160mm × 110mm × 40mm

Technical support:

Provides SDK development kit, and with VB and VC words such as reading development demonstration program.
