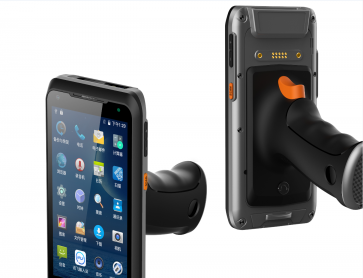

Yanzeo SR3000 Rugged Terminal Mobile Computer PDA, Honeywell N3603/ N6603 Scan Engine,Android 8.1, 4-core CPU,dual-band WiFi,4G

Rugged industrial-grade smart handheld terminal


Waterproof, drop-proof, dust-proof


4-INCH HD SCREEN·Quad-Core CPU·Android 8.1


SR3000 is a powerful industrial-grade smart handheld terminal carefully crafted by Yanzeo.


Equipped with Honeywell N3603/ N6603 Scan Engine, developed based on Android 8.1 operating system, adopts high-performance processor, quad-core CPU, supports dual-band WiFi and high-speed 4G communication, runs fast and saves power.

Availability: In stock

$440.00

We will send this product in 2 days. Read more...

Call us now for more info about our products.

Return purchased items and get all your money back.

Buy this product and earn 10 special loyalty points!


* Required Fields

Details
Details

Yanzeo SR3000 Rugged Terminal Mobile Computer PDA, Honeywell N3603/ N6603 Scan Engine,Android 8.1, 4-core CPU,dual-band WiFi,4G

Note: Exclude the handle and charger base!! If need, pls select in the menu.

If need more or any questions, pls contact us: market@yanzeo.com. Thanks.

  Android 8.1        4G              WIFI               Bluetooth        1D Code      2D Code         125K             Camera            GPS

SR3000 is a powerful Rugged industrial-grade smart handheld terminal carefully crafted by Yanzeo.

Equipped with Honeywell N3603/ N6603 Scan Engine, developed based on Android 8.1 operating system, adopts high-performance processor, quad-core CPU, supports dual-band WiFi and high-speed 4G communication, runs fast and saves power.

Users can expand customized functions according to their needs to help users quickly realize information management and improve production efficiency.

  Physical Parameter

Size

152mm×74mm×17mm

Weight

260g(including the battery)

Screen

4 inch,480*800 resolution

Touch Screen

Industrial-grade capacitive touch screen



Battery Capacity

Lithium Polymer  4100mAh

standby timne>300 hours

Working time>12 hours(Depends on usage and network environment)

Charging time 2-3 hours(using the standard power supply and USB )

Expansion slot

1个SIM slot,1 Micro SD (TF) card slot maximum support,

128GB

Communication Interface

USB Type-C, support OTG function and fast charge

Audio

Microphone, earpiece, 1W speaker, support voice call

Keyboard

3 TP buttons + 5 side buttons + numeric keyboard

Sensor

Gravity sensor, vibration motor

power supply

100-240V,50-60Hz;Input:5V,2A

Performance Parameter

High version

CPU: Cortex A-53 1.5 GHz Quad-Core CPU

RAM+ROM: 2GB+16GB

Extended memory

MicroSD (TF) card can be expanded to 64GB


Communication

WLAN

Support IEEE802.11 ac/a/b/g/n protocol (2.4/5G dual frequency),



WWAN

GSM:850/900/1800/1900Mhz)

TD-SCDMA:Band34,Band39

WCDMA:Band1,Band2,Band5,Band8

TDD-LTE:Band38,Band39,Band40,Band41

FDD-LTE:Band1,Band3,Band7

Bluetooth

Bluetooth 4.1(support HS)

GNSS

Integrated GPS, Beidou, GLONASS, built-in antenna, support AGPS

Using Environment



Working temperture

-20oC --50oC



Storage temperature

-40oC -- 70oC



environment humidity

5%RH - 95%RH(No condensation)



Fall test

1.5m cement floor



Rolling test

1000 rounds 0.5m rolling (equivalent to 2000 impacts)



Electrostatic

±15kV air discharge, ±8kV direct discharge



Protection level

IP66, meets IEC sealing standards



Static Protection

±15KV air discharge, ±6KV contact discharge



Data Collection

Camera (front optional 5 million)

Rear Camera

13 million pixel color camera, support auto focus, flash

Barcode collection (optional)

1D scan engine

Honeywell N4313 / UE966 / Zebra SE965



Supported 1D barcodes

UPC/EAN,Code128,Code39,Code93,Code11,

Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,

Codabar,MSI,RSS etc.

2D scan engine

MD5600/ Honeywell N3603/ Honeywell N6603(Standard: Honeywell N3603/ N6603)





Supported 2D barcodes

PDF417, MicroPDF417, Composite, RSS, TLC-39,

Datamatrix, QR code, Micro QR code, Aztec,

MaxiCode; Postal Codes: US PostNet, US Planet,

UK Postal, Australian Postal,

Japan Postal, Dutch Postal (KIX) etc.

NFCoptional

Working frequency

13.56MHz

Protocol Standards

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2,etc.

Label Standard

M1 card (S50, S70), CPU card, NFC tag, etc.

Read Distance

2-4cm

Data Collection

Camera (front optional 5 million)

Rear Camera

13 million pixel color camera, support auto focus, flash

Barcode collection (optional)

1D scan engine

Honeywell N4313 / UE966 / Zebra SE965



Supported 1D barcodes

UPC/EAN,Code128,Code39,Code93,Code11,

Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,

Codabar,MSI,RSS etc.

2D scan engine

MD5600/ Honeywell N3603/ Honeywell N6603(Standard: Honeywell N3603/ N6603)





Supported 2D barcodes

PDF417, MicroPDF417, Composite, RSS, TLC-39,

Datamatrix, QR code, Micro QR code, Aztec,

MaxiCode; Postal Codes: US PostNet, US Planet,

UK Postal, Australian Postal,

Japan Postal, Dutch Postal (KIX) etc.

NFCoptional

Working frequency

13.56MHz

Protocol Standards

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2,etc.

Label Standard

M1 card (S50, S70), CPU card, NFC tag, etc.

Read Distance

2-4cm

LF(Optional)

125K RFID

125K small module


Note:

1) Every item is tested strictly before shipping
Need the more quantity please contact us,will provide the best price.

2) We are manufacturers and looking for agents in various countries around the world. OEM orders and global cooperation are available.


Shipping

(1) Items usually are shipped via TNT \FedEx \DHL\AliExpress Standard Shipping! Delivery time -- within the U.S. It is usually just takes 3 to 5 business days, however in rare cases it could take 5 to 7 business days. To Canada,it is usually take 10-15 business days to arrival
(2) No combined shipping discount offered and no pick-up service.
(3) Please make sure your address is correct.
(4) If you want to change the address or let us send it directly to your relevant or friends, please kindly contact us when you make off payment.
Feedback & detailed Seller Rating
We are responsible company, only strive for 5 star positive feedback and will try our best to offer the best service to our buyer. Please email us before leaving negative feedback or open any dispute and please give us 3 business days to resolve the complaint to your satisfaction.
Need more please contact us. Will provide the best price and quality.

What we focused(Zebra,Honeywell,Symobol and self-developed Yanzeo):

1.RFID products(tags,reader writer)

2.Barcode Scanner;

3.PDA,mobile computer

4.Printer parts

We are manufacturer and look for agents in various countries around the world. OEM orders and global cooperation are available. We have lot stock and offer stable supply. If any interest, pls contact me. I would reply you within 24 hours as soon as possible.
