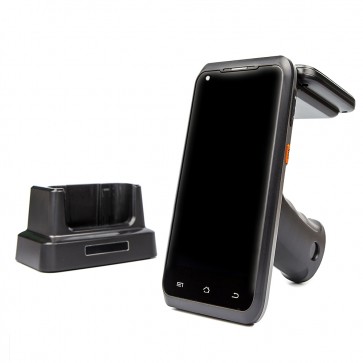

Yanzeo SR3000U UHF RFID Rugged Terminal Scanner PDA. Zabra 4710 Scan Engine. Industrial Mobile Computer. Android 8.1. include handle
Industrial UHF RFID Handheld Terminal Android Scanner
5.5-inch HD screen•Barcode Scanner/UHF RFID•Android 8.1 •Support Fast Charge
Availability: In stock
Yanzeo SR3000U UHF RFID Rugged Terminal Scanner PDA. Zabra 4710 Scan Engine. Industrial Mobile Computer. Android 8.1
Note: Include the handle but exclude the charger base!! If need, pls select in the menu.
If need more, kindly contact us: market@yanzeo.com . Thanks.
Yanzeo SR3000U is a high-performance industrial smart handheld terminal developed by Yanzeo. Equipped with Honeywell N3603/ N6603 Scan Engine, Yanzeo SR3000U has powerful: UHF reading and writing /ID card identification/1D 2D barcode scanning, with better sensitivity, which helps to achieve more precisive , faster data collection. Using the latest Android 8.1 system, equipped with a 2.0GHz eight-core high-speed processor, with longer battery life, excellent performance leads the industry. It is widely used in various fields.
Product parameter |
|
Performance parameter |
|
Eight-core CPU |
|
CPU |
Cortex-A53 octa-core 64-bit 2.0GHz high-performance processor |
RAM+ROM |
2GB+16GB Can be upgraded to 3GB+32G/4GB+64GB |
Expand memory |
MicroSD (TF) card can be expanded to 128GB |
Operating system |
Android 8.1 can be upgraded to 9.0 later |
Communication |
|
WLAN |
Dual frequency 2.4GHZ/5Ghz, support IEEE 802 a/b/g/n/ac protocol |
WWAN |
2G:GSM(850/900/1800/1900MHz) |
3G:WCDMA(850/900/1900/2100MHz) |
|
4G:FDD:B1/B3/B4/B7/B8/B12/B20 |
|
TDD:B38/B39/B40/B41 |
|
Bluetooth |
Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS+5.0 Transmission distance 5-10 meters |
GNSS |
Support GPS, Galileo, Glonass, Beidou |
Physical parameter |
|
Size |
170×78×17mm Handle model |
Weight |
<660g (depending on equipment function configuration) |
Display |
5.5 inches IPS color display, 720*1440 resolution |
Touch Screen |
Support multi-touch The screen can be operated with water or with gloves |
Battery Capacity |
Optional rechargeable Lithium Polymer 3.7V 6000mAh |
Standby time> 1000 hours (theoretical 50 days) |
|
Working time> 12 hours (depending on the using environment) |
|
Charging time for 3-4 hours(using standard power adapter and type-C) |
|
Support optional fast charging, fast charging for 2.5 hours |
|
Expansion Card Slot |
PSAM x 2 (optional), Micro SIM card x 1, TF card x 1 |
Communication Interface |
Type-C USB x 1, support OTG function |
Audio |
Speaker (mono), microphone, earpiece |
Keyboard |
Silicone buttons: power button, volume +/- button, scan button × 2 |
Sensor |
Gravity sensor, light sensor, distance sensor, vibration motor |
Language/ Input Method |
|
Input Method |
English, Pinyin, Wubi, handwriting input, support soft keyboard |
Language |
Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, Singapore and other language |
|
Function expansion: |
||
Barcode collection (optional) |
||
1D scan engine |
Universal laser scanning head |
|
Supported 1D barcodes |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. |
|
1D/2D scan engine |
Domestic 2D hard decoding scan head (default Minde); domestic cross laser Zebra 4710 |
|
Supported 1D barcodes |
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codaber,Interleaved 2 of 5,Chinapost25,ISBN/ ISSN,Code93,UCC/EAN-128,GS1 atabar,HIBC |
|
Supported 2D barcodes |
PDF417,MicroPDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code |
|
Function optional expansion |
||
Handle + shield (UHF distance 5-10 meters) |
|
|
Camera |
||
Rear Camera |
1300W pixel high-definition camera, Support auto focus, flash, anti-shake, macro shooting |
|
Front camera (optional) |
500W pixel color camera |
|
NFC(optional) |
||
13.56MHz |
|
|
Support ISO14443A/B, 15693 protocol |
|
|
2cm-5cm |
|
|
Using environment |
||
-20℃--60℃ |
|
|
-40℃--70℃ |
|
|
environment humidity 5%RH--95%RH (no condensation) (provide test report) |
|
|
Within the operating temperature range, 6 sides can withstand a height of 1.2 meters Impact of 30 drops to the concrete surface (test report provided) |
|
|
500 times of continuous rolling 0.5m, 6 surface contact surfaces still run stably after rolling |
|
|
IP65(test report provided) |
|
|
Accessories |
||
Power supply, type-C, protective film, handle |
|
|
|
Note:
1) Every item is tested strictly before shipping
Need the more quantity please contact us,will provide the best price.
2) We are manufacturers and looking for agents in various countries around the world. OEM orders and global cooperation are available.
Shipping
(1) Items usually are shipped via TNT \FedEx \DHL\AliExpress Standard Shipping! Delivery time -- within the U.S. It is usually just takes 3 to 5 business days, however in rare cases it could take 5 to 7 business days. To Canada,it is usually take 10-15 business days to arrival
(2) No combined shipping discount offered and no pick-up service.
(3) Please make sure your address is correct.
(4) If you want to change the address or let us send it directly to your relevant or friends, please kindly contact us when you make off payment.
Feedback & detailed Seller Rating
We are responsible company, only strive for 5 star positive feedback and will try our best to offer the best service to our buyer. Please email us before leaving negative feedback or open any dispute and please give us 3 business days to resolve the complaint to your satisfaction.
Need more please contact us. Will provide the best price and quality.
What we focused(Zebra,Honeywell,Symobol and self-developed Yanzeo):
1.RFID products(tags,reader writer)
2.Barcode Scanner;
3.PDA,mobile computer
4.Printer parts
We are manufacturer and look for agents in various countries around the world. OEM orders and global cooperation are available. We have lot stock and offer stable supply. If any interest, pls contact me. I would reply you within 24 hours as soon as possible.
Manufacturer | SLon |
---|
