EPC Gen2 UHF Integrative 5-7 Meters Long Range RFID Reader With Free SDK
EPC Gen2 UHF Integrative 5-7 Meters Long Range RFID Reader With Free SDK
Availability: In stock
Regular Price: $239.00
Special Price $169.00
Details
Details
UHF RFID Card reader 8m long range, 8dbi Antenna RS232/RS485/Wiegand Read 8M Integrative UHF RFID Reader
The UHF RFID Middle Range Reader is a high performance UHF integrated reader .Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+65 | °C |
Storage Temp. | TSTR | -25~+75 | °C |
Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC |
| 350 | 650 | mA |
Frequency | FREQ | 860 | 865~868 902~928 | 960 | MHz |
Effective Distance* | DIS | 300 | 500 | 600 | cm |
INTERFACE
ITEM | COMMENT |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input(TTL level) |
* Effective distance depends on antenna, tag and environment.

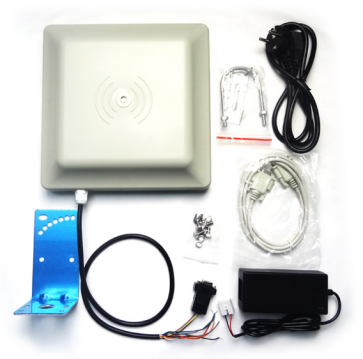

Pictures
Interfaces(RS232,RS485,Wiegand26/34)
9662 read labels, we tested the longest distance is 8 meters, label size and dimensions of the different antennas will affect the reading distance. Welcome more experienced counterparts to exchange UHFRFID!
Free shipping,Have any questions,let us know.
Email:order@slonparts.com
Skype:slontech
