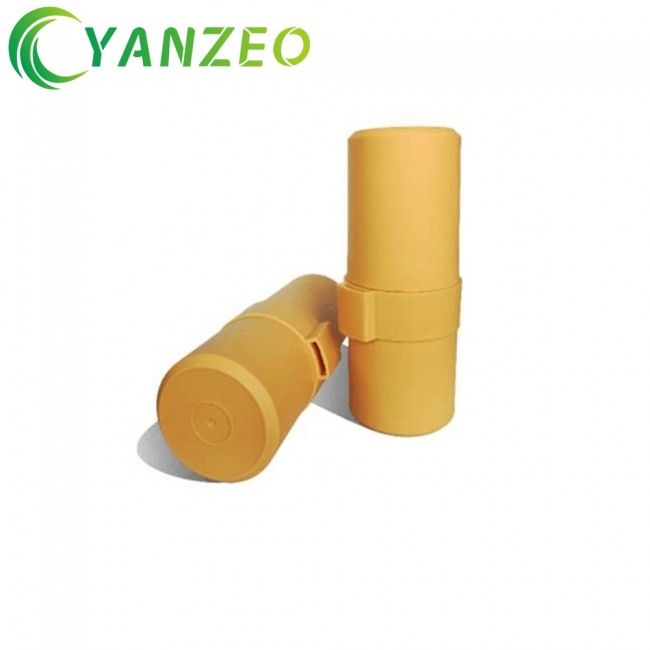

Pipes Tubes RFID Tag for Underground Asset Tracking Pipes Oil Gas Tubes Up to 2.5 Meters Identification Distance / Maintenance-Free / Winding Resistance
● It is a read-only type underground RFID tag.
● It can be buried in the ground and implants wall.
● Can be used for cable, pipe marking, etc.
● The product has the characteristics of good penetration, strong winding resistance, the longest identification distance (up to 2.5 meters), and maintenance-free.
Availability: In stock
Product Description
Pipes Tubes RFID tag for underground asset tracking pipes oil gas tubes
It is a read-only type underground RFID tag. Underground RFID tag can be used in cable, pipe marking, etc. It can be buried in the ground and implants wall. Using frequency of 125KHz, the product has good penetration, around the barrier ability, identify distance (can 2.5 meter) as far as, free maintenance, etc.
Mainly has long distance tag and middle distance tag, even if buried in the ground, effective induction distance is about 1.2 meters to 2.5 meters, the production and processing using the RoHS standard, this product coding format for special format, factory has been compiled not to change the global unique identifier (UID).
Item |
Specification |
Product Name |
Pipes Tubes RFID tag |
SKU |
GSC-UN801 |
Material |
Nylon |
Existing mould size now |
53mm*136mm |
Protocol |
iso11784/iso11785 |
ID number |
the unique factory code in the world |
Read/write Time: 0.01MS |
0.01MS |
Frequency |
125KHZ |
Weight |
710g |
Data storage |
> 30 years |
Reading distance |
2.5 meters farthest (air medium) |
Preservation environment temperature |
-40ºC~80ºC |
Operating temperature |
-25ºC~+65ºC |
Communication mode |
uart,rs232,rs485 multiple interface optional |
Color |
yellow and green |
Chemoresistance |
ISOIP76, waterproof, sunscreen, soaked |
Available artworks |
Full color logo print,Laser engraving,QR code, barcode, laser numbering; dating,serial number,encoding,company name,custom logo ,etc |
Application |
Standard read-only type of underground labels, using 125K frequency, with a good penetration, the ability to forgive, identify distance (farthest 2.5 meters), maintenance-free features Application: Underground label is the company according to the market need to develop an underground radio frequency identification label, applied to cable, pipeline marking, can be buried in the underground and implanted in the wall use |
Manufacturer | SLon |
---|
