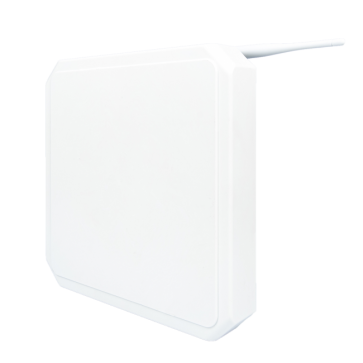

SR891 40m R2000 Long Range UHF Integrated Reader UDP RJ45 WIFI IP67 Output UHF RFID Reader For Parking Management

OPERATIONAL PARAMETER

Air interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C ; ISO 18000-6B

Receiving sensitivity

< -85 dBm

Inventory tag peak speed

>700 sheets / sec

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Work area support

Chinese Mainland

Japan

Korea

Operating spectrum range

860Mhz – 960Mhz

Label cache

1000 labels @ 96 bit EPC

Working mode

Stand alone / intensive (DRM)

Communication interface

RJ45；WiFi ；Bluetooth 4.0(low power consumption)

Antenna interface

SMA-J / TNC

Heat dissipation mode

External heat sink air cooling

Read distance

Approximately 40 meter

PHYSICAL CHARACTERISTICS

Dimension H x W x L:

255mm*255mm*85mm(Length x Width x Height)

Weight

800g

Cable

Standard 1M straight

Material

ABS + PC

POWER PARAMETER

Working voltage

3.7V – 5 V

Working current

1.2A  +/-10%

Output power

0 – 33dBm

Standby state current

<50mA

Sleep state current

<100uA

ENVIRONMENTALPARAMETER

Operating Temperature

 -20℃~+55℃

Working Humidity

< 95% ( + 25 °C)
