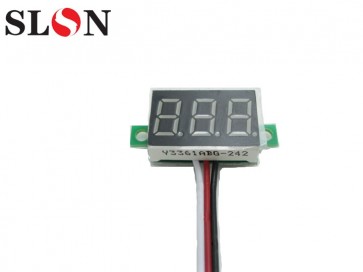

Mini 3-Wire Voltmeter 0.36 Inch DC 0V-30V DC Voltage Meter Motorcycle Voltmeter Digital Display

Product:

DESCRIPTION

Put a voltage meter anywhere with this very handy display. These are often used by RC hobbyists for keeping track of batteries but we thought it would be great on a breadboard or enclosure. This is the 3-wire version of the volt meter, two wires are used to power it and the third wire is used for measurement. We also have a 2-wire version that measure it's own power supply.

Brand:YAOZEO

Ultra-low cost and high precision meet most application requirements.

●High precision
● Low starting voltage, red minimum 4.5V, green minimum 5.0V, blue minimum 5.0V.
●With reverse connection protection, it will not burn.

Technical Parameters:

Measuring range
0.00V-30.0V

Power supply range
Red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V

Highest input
DC30.0V. Note: The input voltage is higher than 30V and may be permanently damaged!

Allowable error
±1%; the error is ±0.3V when it is greater than or equal to 10V; the error is ±0.10 when it is less than 10V

input resistance
> 100K Europe

Working current
Red < 23mA, green < 18mA, blue < 13mA

Refresh rate
About 300mS once

Display method
Three 0.36" LED digital tube

Display color
Red, green, blue optional

Lead length
15cm

Dimensions
23 x 15 x 10 mm, length X width X thickness (without mounting ears);

With mounting ear length

33mm

Mounting holes
Pitch: 28mm, aperture: 2.8mm

net weight
5.1g
Gross weight
5.7g

Operating temperature

-10°C~65°C
