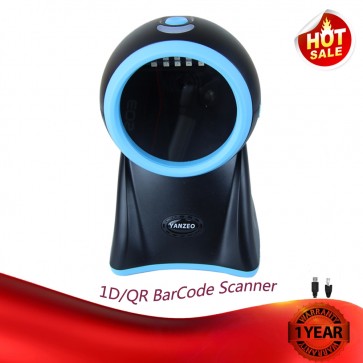

YZ828 Barcode Scanner Omni-Directional High Definition Desktop USB RS232 Easy Scan 1D 2D Bar Code Yanzeo Warranty 12 Months

1 PC YZ828 Omni-Directional Barcode Scanner High Definition Desktop USB RS232 Easy Scan 1D QR Bar Code Yanzeo Warranty 12 Months

Availability: In stock

Regular Price: $99.99

Special Price $89.99

Buy 5 for $85.99 each and save 5%
Buy 20 for $83.99 each and save 7%
Buy 50 for $80.99 each and save 11%
Buy 100 for $75.99 each and save 16%

Details

Details

Every item is strictly tested before shipping

Need more please contact us. Will provide the best price.

We are a manufacturer and looking for agents in various countries around the world. OEM orders and global cooperation are available.

Feature

● Million pixels, super efficient scanning.

● Can read screen bar codes such as mobile phones and computers.

● Using latest decoder technology, can read all 1D and 2D barcodes.

● USB and RS232 interface, can automatically match device,plug and play.

● Unique shape design,rotatable base to meet many scanning applications.

● Blue and red LED indicator,double buzzer to adapt to various nosy environments.

● The cable is made of high temperature resistant material and high quality inner copperwire to meet various environments and using line is longer.

Application area:

Mainly used in large supermarkets, shopping malls,Wechatpayand Alipay

Technical Specifications

OPERATIONAL PARAMETER
Image (pixels)	*1280 pixels(H)800 pixels(v)**
Light Source	Aiming:617 nm LED ;illumination:6500K LED
Decode Capability	2D：QR Code, Data Matrix, PDF417,Aztec, Maxicode，HanXin Code 1D： UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
Depth of Filed	0-200mm @ UPC/EAN 13mil PCS=90%；0-150mm @ QR 20mil PCS=100%
Scan Angle	Left and right 60°/Front and Rear 60°/Move360°
Field of view	48° horizontally, 30° vertical
Read Resolution	≥ 5mil
Print Contrast	≥25%
Visual Indicator	Blue and Red double Colored LED light,Double Buzzer
Interface	TTL-232 , USB (HID-KBW、V-com)
PHYSICAL CHARACTERISTICS
Size	*105mm103mm162mm（LWH）*
Package Box Size	*120mm105mm175mm（LWH）*
Weight	270g( Without cable）
Cable	Standard 1.8M straight
POWER PARAMETER
Input Voltage	5VDC±10%
Working current	400mA
ENVIRONMENTAL PARAMETER
Operating Temperature	-20℃~+60℃
Working Humidity	5% to 95% relative humidity, non-condensing
Storage Temperature	-40℃~+70℃
Light Levels	0~100,000Lux
