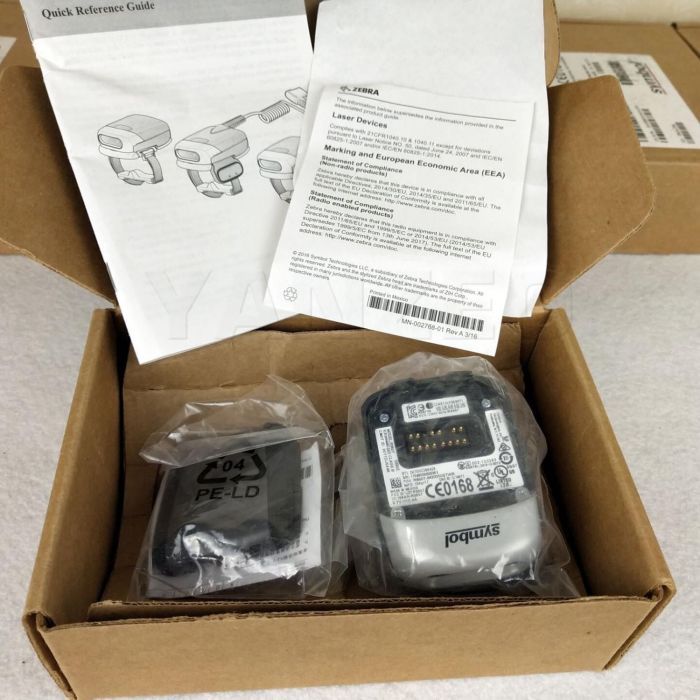

RS507-IM20000STWR 2D Barcode Scanner For Symbol Zebra Motorola RS507 Ring Bluetooth Mounted Scanning Engine
RS507-IM20000STWR N2S27ER 2D Barcode Scanner For Symbol Zebra Motorola RS507 Ring Bluetooth Mounted Scanning Engine
Availability: In stock
$359.99
- Buy 2 for $330.00 each and save 9%
Details
Details
PHYSICAL CHARACTERISTICS | |
---|---|
Dimensions (H x W x L): | 1.16 x 2.1 x 2.92 in. (2.9 x 5.3 x 7.4 cm) |
Weight: | Triggerless, standard battery: 4.3 oz./121.4 g |
PERFORMANCE CHARACTERISTICS | |
---|---|
Optical Resolution: | WVGA 752 H x 480 V pixels (gray scale) |
Roll: | 360° |
Pitch Angle: | ± 60° from normal |
Skew Tolerance: | ± 60° from normal |
Aiming Element: | 655 nm ± 10 nm Visible Laser |
Illumination Element: | 637 nm ± 20 nm Red LEDs |
Field of View: | Horizontal: 39.6°; Vertical: 25.7° |
SR Typical Working Distance (from exit window): | * Refer table |
DL Typical Working Distance (from exit window): | * Refer table |
Ambient Light Immunity (from total darkness): |
Indoor: 450 ft. candles (4,845 lux) Outdoor: 9,000 ft. candles (96,900 lux) |
Motion Tolerance: | 25 inch per second, typical |
Supported Symbologies: | Codabar, Code 39, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A and UPC-E Code 11, Code 32 Pharmaceutical (PARAF), Code 93, MSI, Reduced Space Symbology (RSS-14, RSS Limited, RSS Expanded), Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/stop), Trioptic, UPC-E1 4-CB (4-State Customer Barcode), Aztec, MicroPDF417, PDF417, MaxiCode Australian Post, British Post (4 state code and “infomail”), Data Matrix, Japanese Post, KIX (Netherlands) Post, Planet Code, Postnet, QR Code, EAN/UCC Composite, TCIF Linked Code 39 (TLC39) |
Supported Aiming Modes: | Class 2 Laser, cross hair with bright center for sunlight visibility; Pick List mode option |
Interface: | Bluetooth: Class II, v 2.1 with Adaptive Frequency Hopping (AFH) Supporting profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery Application Profile (SDAP) Pairing: by reading terminal BT address as barcode off the display Serial |
Field Replaceable Parts: |
Batteries, corded adaptor, trigger swivel, triggerless strap holder, comfort pad, straps and buckle |
USER INTERFACE | |
---|---|
LED: | Two (parallel), multi color, rear left and rear right |
Beeper: | Rear center, up to 80 dBA SPL @ 10 cm |
Restore Key: | User accessible for emergency boot up and Bluetooth reconnect (after excessive disconnection period) |
Scan Triggering: | Manual or Automatic using Interactive Sensor Technology (IST) |
USER ENVIRONMENT | |
---|---|
Operating Temperature: | -4° to 131° F/-20° to 55° C |
Storage Temperature: | 40° to 158° F/-40° to 70° C excl. battery -40° to 140° F/-40° to 60° C incl. battery |
Humidity: | 5% to 85% (non-condensing) |
Drop Specification: | 6 ft./1.8 m multiple drops to concrete across operating temperature range |
Sealing: | IP54 |
Electrostatic Discharge: | ESD: ±15kV air discharge, ±8kV direct discharge |
POWER | |
---|---|
Cordless: | Li-Ion 970mAh, 3.7V with up to 35,000 scans (continuous) or up to 10 hours with 900 scans per hour on a single charge using fresh batteries. Li-Ion 1940mAh, 3.7V with up to 70,000 scans (continuous) or up to 20 hours with 900 scans per hour on a single charge using fresh batteries. |
Corded: | Corded adaptor to WT4000 |
SOFTWARE COMPATIBILITY | |
---|---|
Zebra’s Mobility Services Platform (MSP); DataWedge; Wavelink’s Terminal Emulation (TE) |
PERIPHERALS AND ACCESSORIES | |
---|---|
Battery charger: | Charges eight (8) standard and extended batteries simultaneously in 4 hours. Includes LED indicators (8) and battery age test. |
REGULATORY | |
---|---|
Electrical Safety: | Certified to UL60950-1, CSA C22.2 No. 60950-1, EN60950-1, IEC 60950-1 |
Laser Safety: | CDRH Class II, IEC 60825-1 Class 2 |
EMI/RFI: | FCC Part 15 Class B, ICES-003 Class B, European Union EMC and R&TT Directives, Australian AS/NZS 60950.1 |
RoHS: | Compliance with RoHS standards |
RECOMMENDED SERVICES | |
---|---|
Service from the Start with Comprehensive Coverage |
