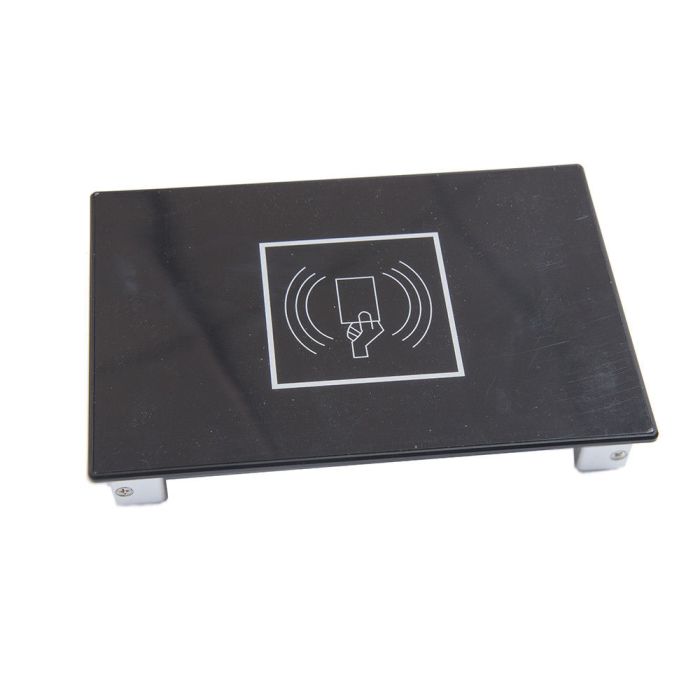

SR680 UHF Desktop RFID Reader For ID Authorization Access Control With Free SDK
In stock
SKU
SR680
$295.00
Quick Overview
New Coming UHF Desktop Reader For ID Authorization Access Control
Related Products
Check items to add to the cart or
Model | SR680 Desktop Reader and Writer |
Technical Specification | |
Frequency | 860-960MHZ |
FM model | FHSS or Fixed，adjustable |
Antenna | Built-in double-fed ceramic antenna |
Interface | Tcp/ip、RS232、W/G、RS485 |
App interface | DLL,JAVA,VB |
Tag operation Specification | |
Read distance | output 20 dBm，10-15cm±5， |
Write distance | Output 25 dBm，10-15cm±5， |
Protocol interface | ISO-18000-6B、ISO-18000-6C（EPC G2）、TK900 |
Physical Specification | |
Size | 200(L)*135 (W)*28(H)mm |
Power | DC9V/3A |
Weight(after package) | 900g |
Humidity | 5% to 95%, Non-condensing |
Insistant | IEC IP52 |
Working temperature | -20 ºC to +60 ºC |
Storage temperature | -40°C to 80°C |
Full support for compliance with ISO-18000-6C (EPC G2) standards.
Operating frequency 860-960MHZ (can be adjusted according to different countries or regions);
Support TCP / IP Ethernet, RS232 serial port, RS485, Wigan 34,26 and wireless communication;
Provide I / 0 input and output interfaces, linkage access control controller to use;
Reading, writing card sensitive, the scope of control, distance control;
Card reader antenna with double-fed ceramic antenna, no blind spot card reader to ensure that the card, write card success rate of 100%
Provide Free SDK and test card,can be second development
Free shipping ,have any questions,pls let us know .
Email:sales1@printerfuser-hp.com
Skype:slontech
Email:sales1@printerfuser-hp.com
Skype:slontech
| Manufacturer | SLon |
|---|
