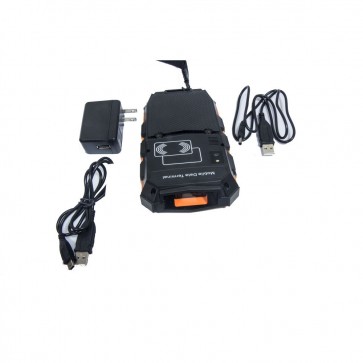

SR927 3m Read Range RFID Reader UHF Handheld Reader 868mHZ 925mHZ Data Collect
Availability: In stock
- Buy 2 for $679.00 each and save 2%
- Buy 5 for $666.00 each and save 4%
SPECIFICATIONS |
|||
PHYSICAL CHARACTERISTICS |
|||
Dimension |
170mm(H)x85mm(W)x23mm(D)±2 mm |
||
Weight |
Net Weight :370g (including battery&wrist strap) |
||
Display |
Gorilla Glass 3 9H 5.0 in. TFT-LCD(720x1280)touch screen with backlight |
||
Backlight |
LED backlight |
||
Keypads |
3 TP keys, 6 function keys, 4 side buttons |
||
Expansions |
2 PSAM, 1 SIM, 1 TF |
||
Battery |
Rechargeable li-ion polymer, 3.7V, 4500mAh |
||
PERFORMANCE CHARACTERSTICS |
|||
CPU |
Quad A53 1.3GHz quad-core |
||
Operating System |
Android 5.1.1 |
||
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
||
USER ENVIRONMENT |
|||
Operating Temp. |
-20℃ to 50℃ |
||
Storage Temp. |
-20℃ to 70℃ |
||
Humidity |
5%RH to 95%RH(non-condensing) |
||
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
||
Sealing |
IP65, IEC compliance |
||
ESD |
±15kv air discharge, ±8kv direct discharge |
||
DEVELOPMENT ENVIRONMENT |
|||
SDK |
HHW Software Development Kit |
||
Language |
Java |
||
Environment |
Android Studio or Eclipse |
||
DATA COMMUNICATION |
|||
WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
WLAN |
2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
||
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
||
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||
DATA CAPTUER |
|||
BARCODE READER |
|||
1D barcode |
1D laser engine |
Symbol SE955 |
|
Symbologies |
All major 1D barcodes |
||
2D barcode |
2D CMOS Imager |
Honeywell N6603 |
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
||
COLOR CAMERA |
|||
Resolution |
8.0 megapixel |
||
Lens |
Auto-focus with LED flash |
||
RFID READER |
|||
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
||
Antenna Gain |
Circular antenna(2dBi) |
||
R/W Range |
1 m to 1.5 m(tags and environment dependant) |
||
ACCESSORIES |
|||
Standard |
1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable |
Free shipping,Have any questions,let us know.
Email:order@slonparts.com
Skype:slontech
Manufacturer | SLon |
---|
