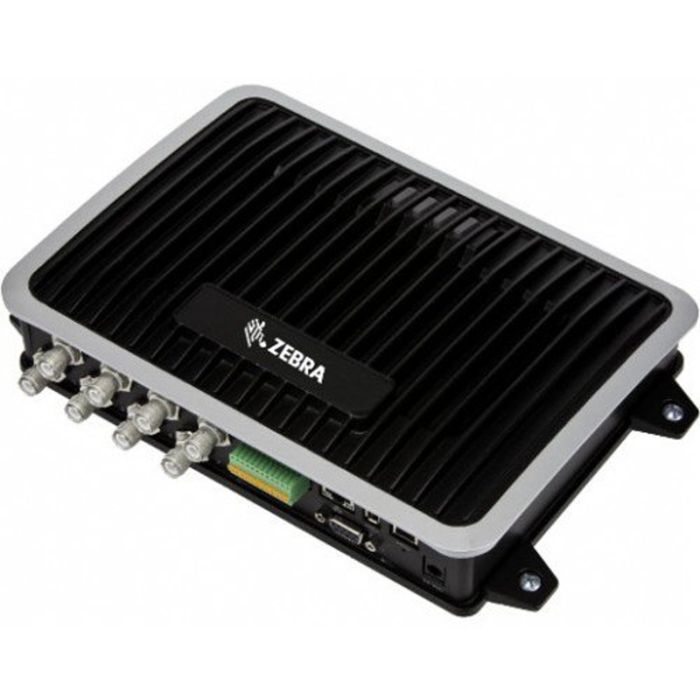

FX9600-82325A50-WR ZEBRA UHF RFID Reader FX9600 8-Port 8 Channel Eight Port Fixed Forklift Reader
Availability: In stock
Regular Price: $1,599.00
Special Price $990.00
- Buy 2 for $985.00 each and save 1%
- Buy 3 for $980.00 each and save 2%
Description
Now, get the performance and features you need to handle it all with the FX9600 — without breaking the bank. With industry-leading read rates, exceptional read accuracy and superior RF sensitivity, the FX9600 has what it takes to automate nearly every aspect of your inventory management — from receiving and putaway to picking and shipping — without errors or bottlenecks. The FX9600 is the industry-best performance your operation needs at a price you can afford.
Product Details
Product Details
High RF sensitivity ensures excellent performance and efficiency
Parse data at the edge with embedded applications
Simple and low-cost deployment with support for PoE and PoE +
Connect directly to Wi-Fi networks and Bluetooth-enabled devices
Compact and streamlined design
More read points per reader
Durable design for harsh environments
Physical parameter
Dimensions 10.75 inches (length) x 7.25 inches (width) x 2.0 inches (depth)
27.3 cm (length) x 18.4 cm (width) x 5 cm (depth)
Weight Approx. 4.4 lbs / 2.13 kg
Housing material Cast aluminum, IP53 sealed
Intuitive status indication
Multicolor LED: Power, Activity, Status, and Application
Environmental parameters
Operating temperature
-4 ° to + 131 ° F / -20 ° to + 55 ° C
Storage temperature -40 ° to + 158 ° F / -40 ° to + 70 ° C
Humidity 5% to 95% (non-condensing)
seal
IP53
RFID parameters
Highest receiving sensitivity
-86 dBm monostable
Air interface protocol
ISO 18000-6C (EPC Class 1 Gen 2 V2)
frequency
(UHF band)
Global models: 902 MHz-928 MHz (also supports countries / regions that use this band), 865 MHz-868 MHz, US models only: 902-928 MHz
Transmit power output
0 dBm to +33 dBm (POE + 802.3at, universal 24VDC power supply)
0 dBm to +31.5 dBm (POE 802.3af)
connection
Communication 10/100 BaseT Ethernet (RJ45); USB host and client (Type A and B); serial (DB9)
Universal I / O 4 inputs, 4 outputs, optically isolated (terminal block)
power supply
POE (802.3af) POE + (802.3at) + 24V DC (UL approved)
Antenna port
FX9600-4: 4 monostable ports (reverse polarity TNC)
FX9600-8: 8 monostable ports (reverse polarity TNC)
Other parameters
processor
Texas Instruments AM3505 (600 Mhz)
RAM
512 MB flash; 256 MB DRAM
operating system
Linux
Firmware upgrade
Web-based remote firmware upgrade function
Management Agreement
RM 1.0.1 (with XML over HTTP / HTTPS and SNMP binding); RDMP
Internet service
DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP, and NTP
Network stack
IPv4 and IPv6
Safety
Transport Layer Security Ver 1.2, FIPS-140
API support
Host applications — .NET, C, and Java EMDK embedded applications — C and Java SDK
Application Industry
Manufacturing, warehouse management
Manufacturer | SLon |
---|
