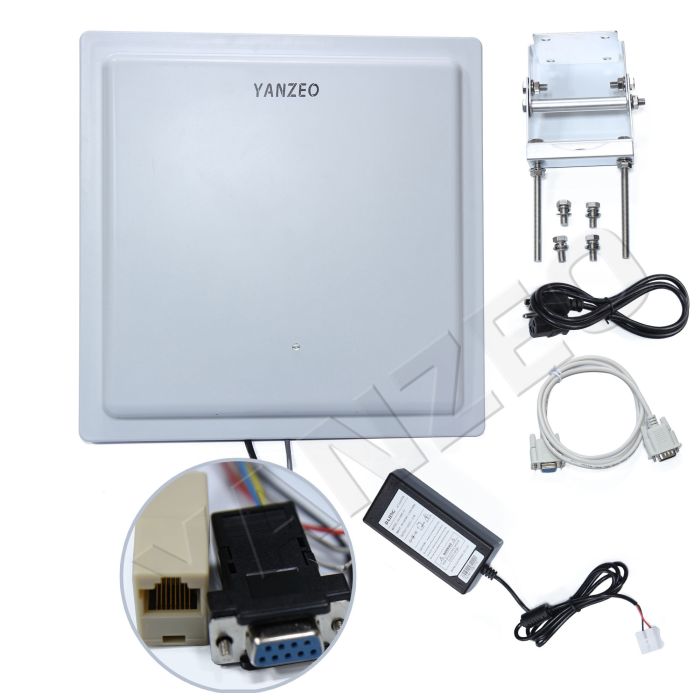

Yanzeo SI802 15M-30M Long Range 12dbi Antenna RS232/RJ45/ Wiegand UHF RFID Reader New Warranty 12 months

In stock

$309.00
  • Buy 2 for $299.00 each and save 4%
  • Buy 5 for $289.00 each and save 7%
  • OR

    Quick Overview

    1 PC Yanzeo SI802 15M-30M Long Range 12dbi Antenna RS232/RJ45/ Wiegand New UHF RFID Reader Warranty 12 months

    Details

      Yanzeo SI802 is a high-performance linear polarized antenna UHF reader compatible with ISO 18000-6C and ISO 18000-6B standards. Its operating frequency is 902MHz ~ 928MHz, excellent read and write performance, especially suitable for reading high-speed mobile label. The reader meets a variety of application needs, especially for community, parking vehicle management, highway non-stop charging and logistics management.

    Application areas:

    Logistics and warehousing management: item flow and warehousing management and flow management of mail, parcels, transport baggage, etc.;

    Intelligent parking lot management: parking lot management and charging automation;

    Production line management: identification of the production process fixed point;

    Product anti-counterfeiting detection: use the in-tag memory write protection function to identify the authenticity of the product;

    Other areas: in the club management, library, student status, consumption management, attendance management, dining management, pool management and other systems have been widely used.

    Product Features:

    The power is small, the reading and writing distance is stable and reliable;

    Fast data read rate;

    Label wakeup recognition;

    Multi-zone multi-label reading;

    Directional tag data writing;

    Multi-protocol compatibility;

    Waterproof design;

    Yanzeo SI802 Passive UHF Reader Technical Parameters

    Functional Characteristics

    Working Frequency:

    National standard (920 ~ 925MHz)

    American Standard (902 ~ 928MHz)

    Other multinational frequency standards (customized)

    Label Agreement:

    ISO18000-6C (EPC GEN2)

    ISO18000-6B

    Frequency Hopping Mode:

    Broadband frequency hopping (FHSS) or fixed frequency, which can be set by software;

    Antenna Parameters:

    12dBi linear polarized antenna (built-in)

    Output Power:

    0dBm ~ 30dBm (software adjustable)

    Read And Write Distance:

    Maximum distance of reading tags: 25m (related to factors such as transmit power, antenna type, tag type and application environment)

    Write tag maximum distance: 6m (related to factors such as transmit power, antenna type, tag type and application environment)

    Working Mode:

    Active mode

    Passive mode

    Answer mode (not recommended)

    External Interface

    Power Interface:

    DC +12V

    Communication Interface:

    RS-232 interface, RS-485 interface

    Wiegand interface: support Wiegand 26, Wiegand 34

    10/100M Ethernet interface

    WIFI,GPRS(customized)

    Trigger Interface:

    1 trigger level input

    GPIO Interface:

    2 GPIO outputs (requires customization)

    Working Environment

    Working Temperature:

    -20℃~60℃

    Storage Temperature:

    -40℃~85℃

    Physical Parameter

    Size:

    450mm×450mm×120mm

    Weight:

    5Kg

    Annex

    Power Adapter:

    AC 110 ~ 220V / DC +12V

    Power Cable:

    Equipped

    RS-232 Signal Cable:

    Equipped

    Mounting Bracket:

    Pole mounting fixture

    Development Kit:

    Provide VS, Android SDK



    Warranty policy:
    Each of Yanzeo RFID Reader will have a 12 months warranty
    Note:it doesn't include the frieght,if you need to order,please contact us first,thanks
    Free shipping! If any questions,pls feel free to contact us!

    Email:order@slonparts.com

    Skype:slontech
    IMG_2996-1IMG_2959-1IMG_2982-1IMG_2953-1IMG_2963-1IMG_2965-1IMG_2977-1
    HTB1pAbJcOMnBKNjSZFoq6zOSFXaETIM20181224113430

    Additional

    Manufacturer Yanzeo
